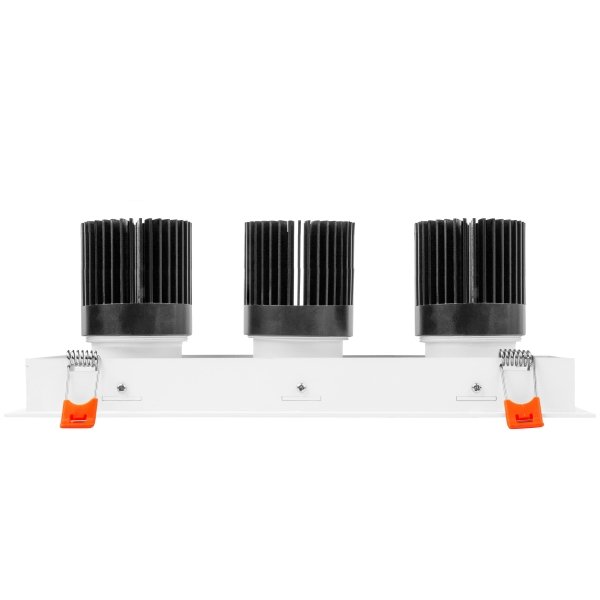

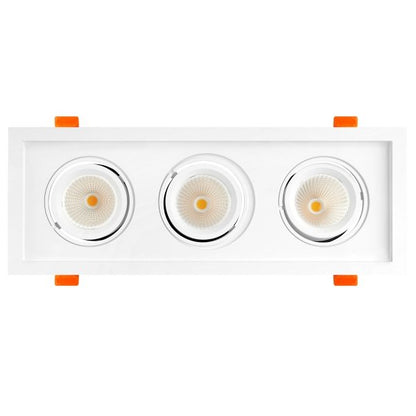

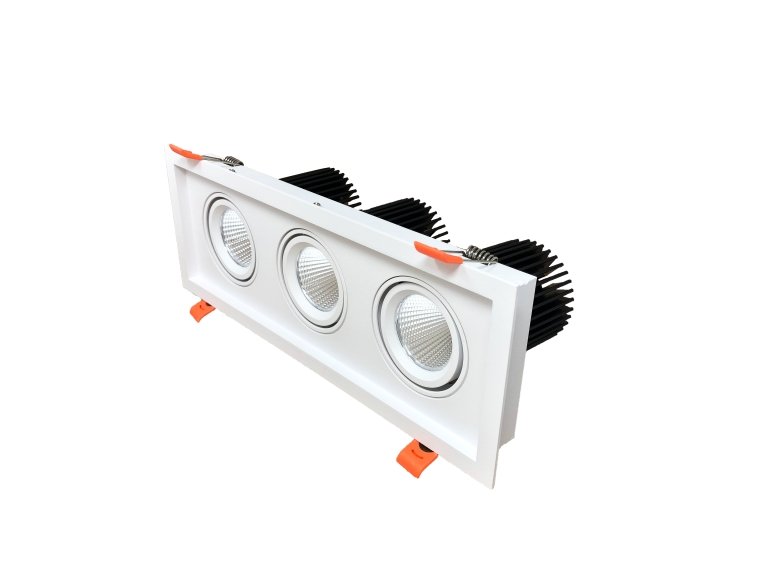

RAYHIL RAD3H 36W Triple Head LED Recessed Downlight 38° Selectable CCT
Description
SONIC TRIPLE HEAD RECESSED LED DOWNLIGHT 38°
Experience the impressive style and functionality of the Rayhil Sonic Multiple Series, perfect for any commercial or residential space. With expertly engineered extruded aluminum heat sink and Type IC rating, these Multiple Head Downlights ensure superior heat dissipation and long-lasting LED performance. Plus, they are air-tight, wet location approved, and feature a 360 degree horizontal rotation and 30 degree tilt for added versatility. Choose from 2-Head or 3-Head options and a variety of color temperature and trim choices to elevate any room.
- Air-tight and damp location approved Type IC rated
- Approved for direct contact with insulation Isolated driver inside junction box
- New Construction plate available (NCH3H)
- Extruded aluminum heat sink ensures optimal heat dissipation and LED life
- 360° rotatable Gimbal with 30° horizontal tilt
- Selectable CCT (30K/35K/40K)

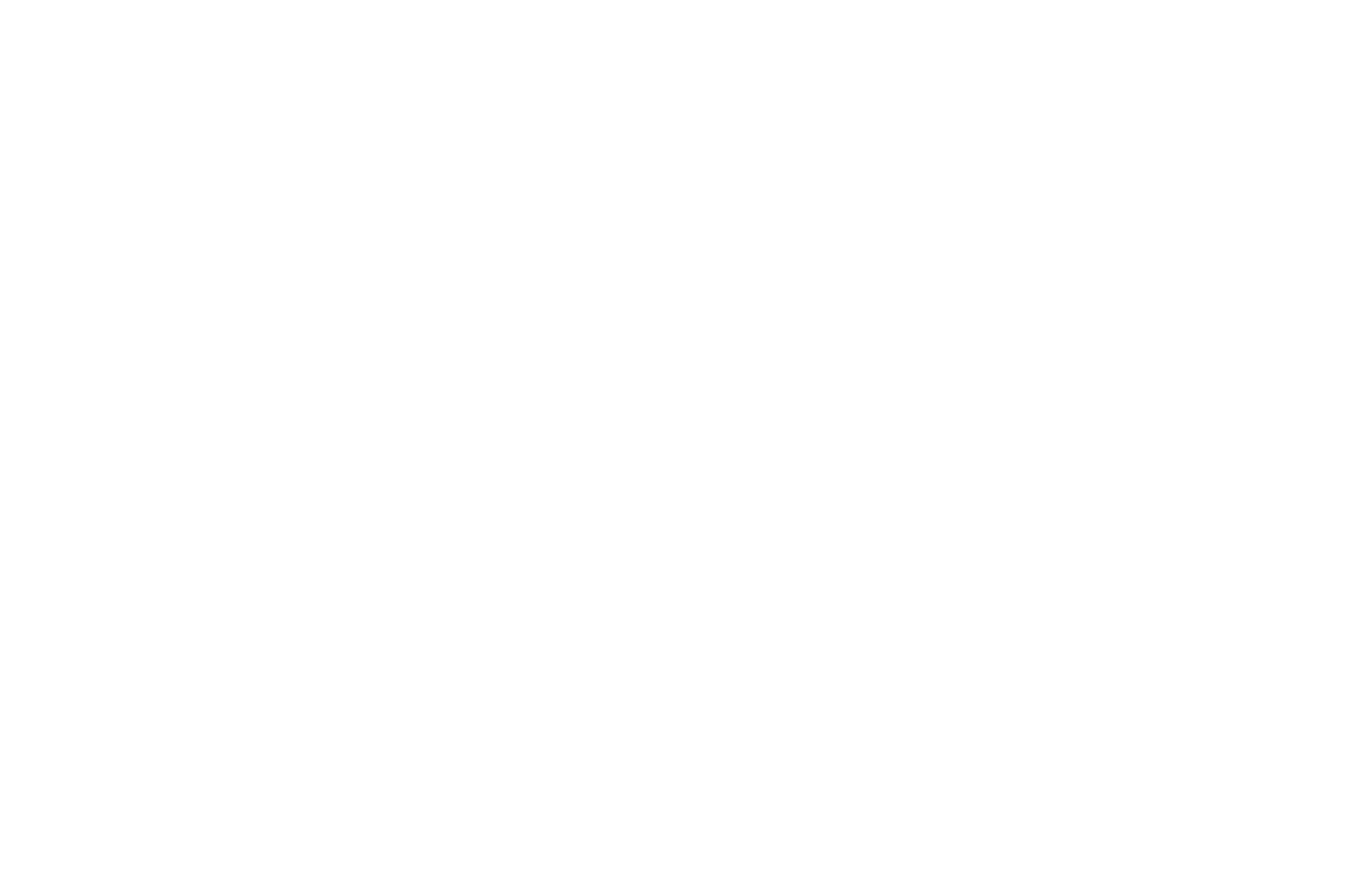

Dimensions
|
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Wattage | 36W (3-12W Luminaires) |
| Lumen | 27000lm |
| Efficacy(LPW) | >75 lm/W |
| Color Temp | 30K/35K/40K |
| CRI | >90 |
| Beam Angle | 38° |
| Dimming | Triac/ 0-10V |
| Lamp Life | 50,000hr |
| Environment | Damp Location |
Spec Sheet
