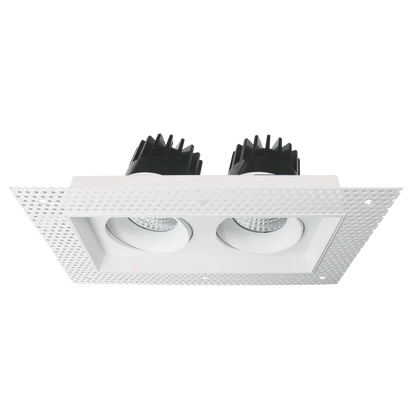

Luxrite Omni LR32202 4" 30W LED Trimless 2 Head Gimbal Selectable CCT
Popular upgrades
Description
30W 4" LED Trimless 2 Head Gimbal
LED/OMNI2/TL/5CCT/HC/G/WFL/DD/UNV/WT
The Luxrite Omni LR32202 LED Trimless 2 Head Gimbal in the new OMNI Collection provides a strong output, wide 60° beam angle, and selectable CCT options. With a versatile 120/277V input and compatibility with Triac or 0-10V dimming, this collection offers customizable solutions for single, double, triple, and 4-head linear lighting projects.
| Fixture Type | Trimless Downlight |
| Finish | White |
| Wattage | 30W |
| Lumen Output | 2000L |
| CCT (Kelvin) | 27K-50K |
| Temperature | Selectable |
| Indoor or Outdoor Fixture | Indoor |
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Technology | LED |
| Wattage | 30W |
| Lumen | 2000L |
| CCT (Kelvin) | 27K-50K |
| Color Temp. | Selectable |
| CRI | >90 |
| Voltage | 120-277V |
| Rated Hours | 50000 |
| Dimmable | TRIAC, 0-10V |
| Beam Angle | 60º |

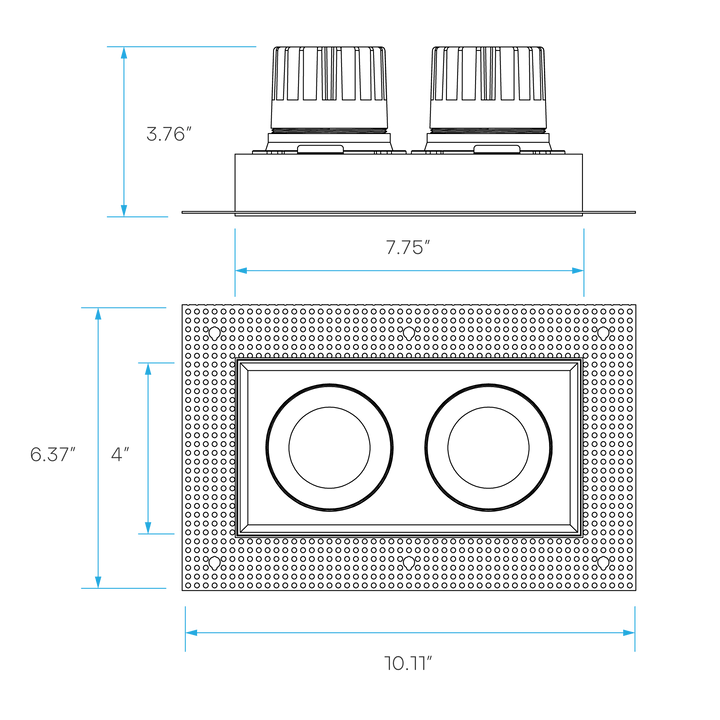

| Length (in.) | 10.11" |
| Width (in.) | 6.37" |
| Cutout (in.) | 7.87" X 4.25" |
|
Height (in.) |
3.76" |
Additional Info
| SKU | LR32202 |
| Safety Listing | cETLus Listed |
| Location Rating | IP65 - Wet |
| Energy Star | Yes |
| Warranty | 5 Years |
Spec Sheet
