Luxrite LR241666" 2X4 Frame Panel Selectable CCT/Wattage
Popular upgrades
Description
2X4 Frame Panel Selectable CCT/Wattage
The Luxrite LR24166 is a 2x4 LED lay-in panel with selectable wattage and color temperature, making it a versatile and efficient choice for both commercial and residential ceiling grid systems. This single SKU offers flexibility to meet a variety of lighting needs, making it ideal for use in offices, schools, healthcare facilities, and commercial buildings. With its sleek and modern design, the LR24166 offers a combination of performance, energy savings, and configurable options for customers looking for high-performance lighting solutions.
- Wattage Selectable: 40W / 50W / 60W (up to 7800 lumens)
- 5CCT Selectable: 3000K / 3500K / 4000K / 5000K / 6500K
- 0-10V Dimmable
- High Efficacy: 130 lumens per watt
- 120° Wide Beam Angle
- CRI 80 for balanced color rendering
- Input Voltage: 100–277V
- DLC Premium and ETL Listed
- Rated Lifetime: 50,000 hours
- Slim Profile: Less than 1" thickness
Spec Sheet
Spec Sheet
Installation Instructions
Info

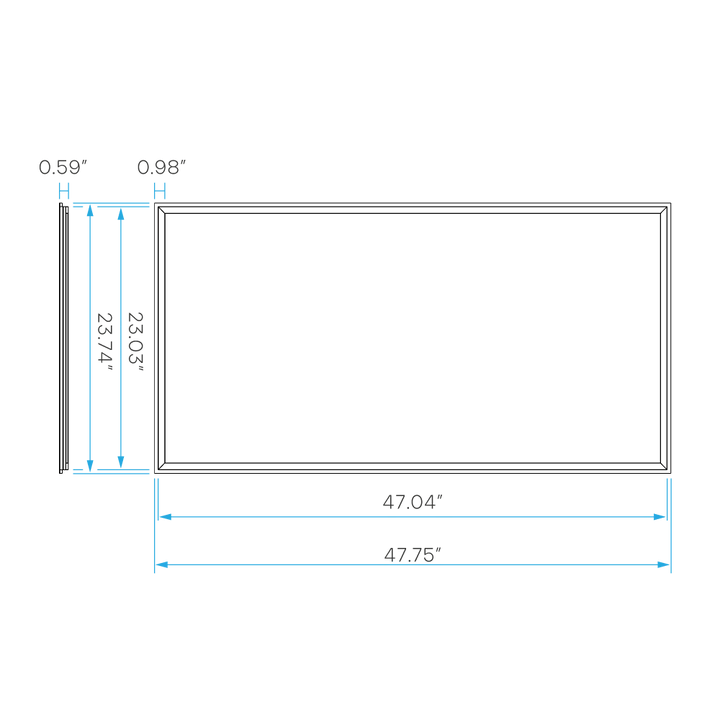

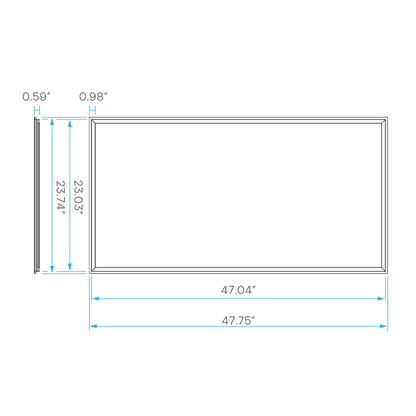

Dimensions
|
| Wattage | 40/50/60 |
| Lumen | 5200/6500/7800 |
| Color Temp. | 3000K/3500K/4000K/5000K |
| Efficacy110 | lm/W |
| CRI | >80 |
| Voltage | 120-277V |
| Dimming |
0-10V |
| Warranty | 5 Year |
Spec Sheet
Luxrite LR241666" 2X4 Frame Panel Selectable CCT/Wattage
