Luxrite Architectural Linear Connectors

Architectural Linear Connectors

Combining standard wrap performance and high-end linear lighting, These architectural linear fixtures offer adjustable wattage and CCT options for an affordable price. Offering 70/30%, 90/10% uplight, or 100% downlight, and reduced glare for a contemporary look. The fixture comes with a suspension kit, straight connector and a 5' power feed.

• Available in following sizes / selectable wattages:
  2FT - 15/20/25W
  4FT - 30/40/50W
  8FT - 50/60/84W

• Available field-adjustable CCTs: 5000/4000/3500/3000K

• End-to-end connector available for continuous run mounting

• 5-Year, No-Compromise Warranty

• UL listed for damp locations
• DLC listed

Spec Sheets

Spec Sheet

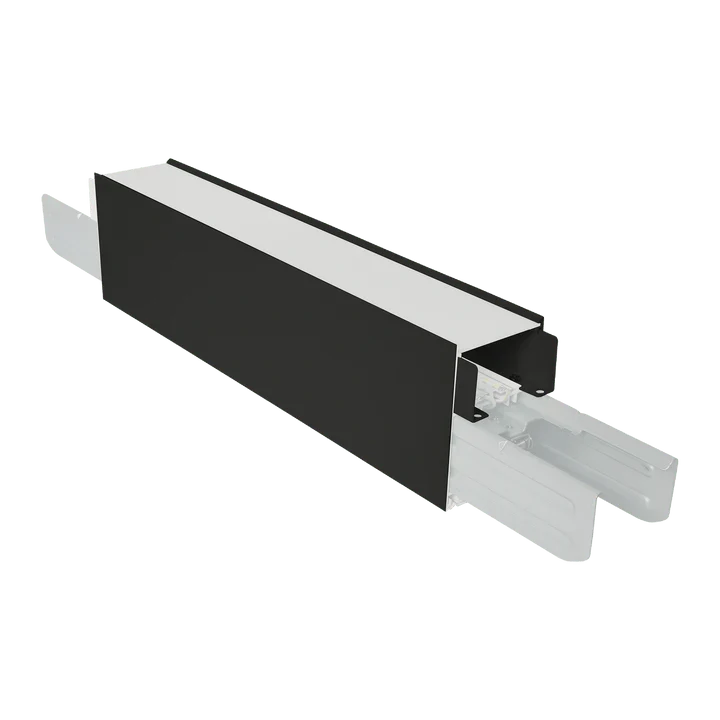

Straight Connector Instructions

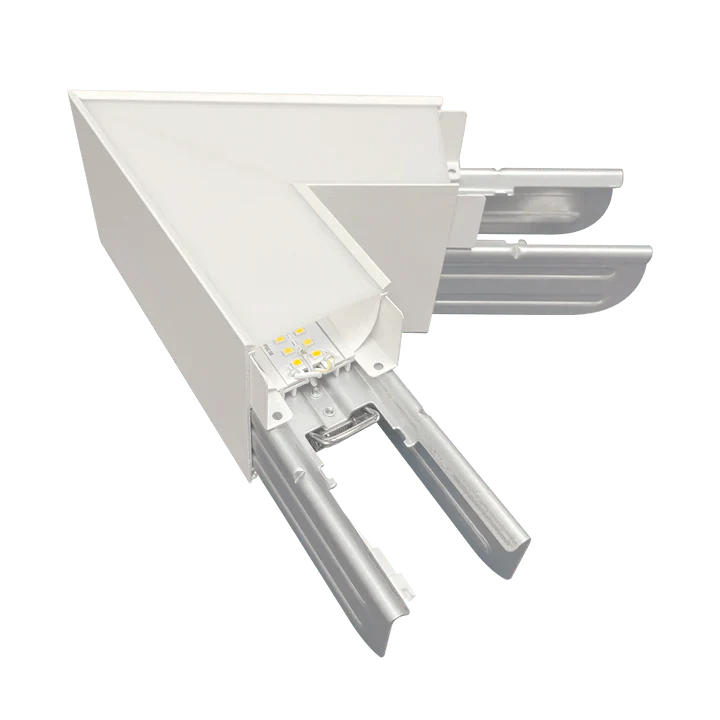

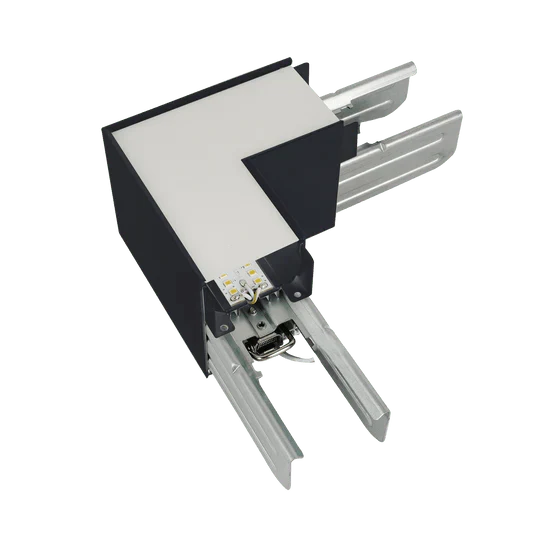

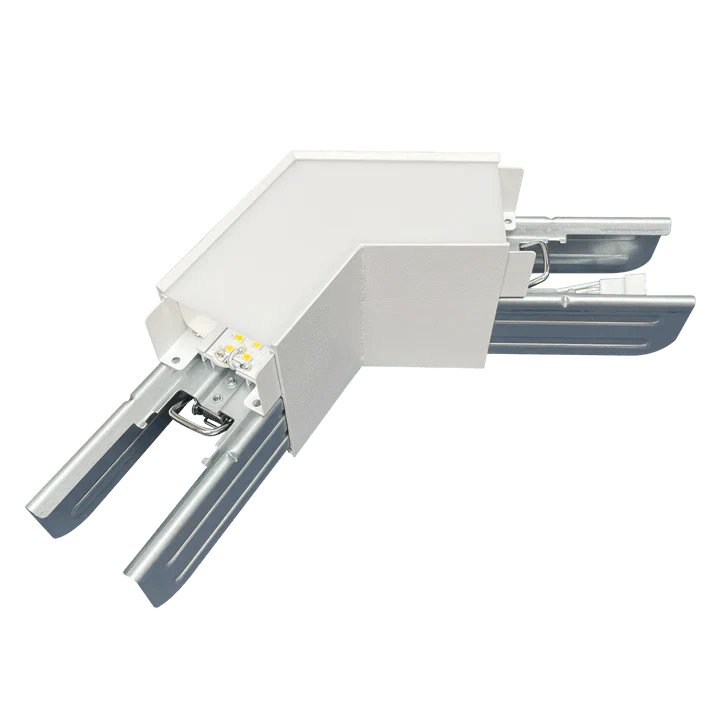

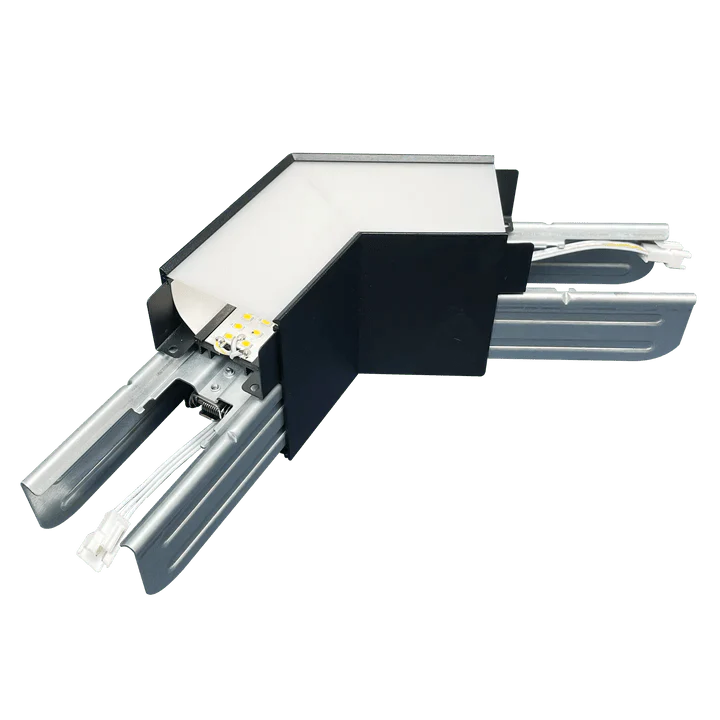

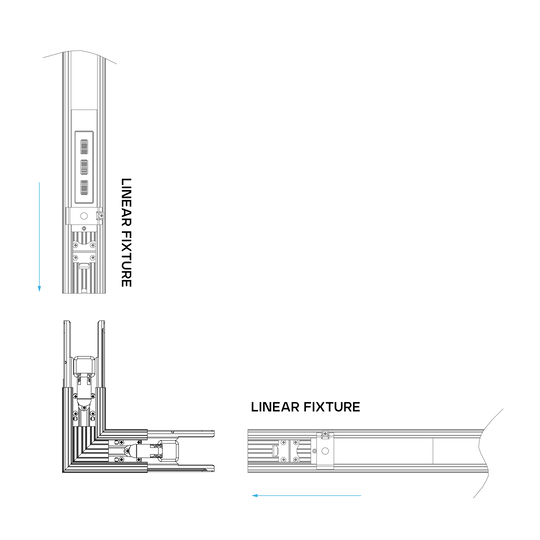

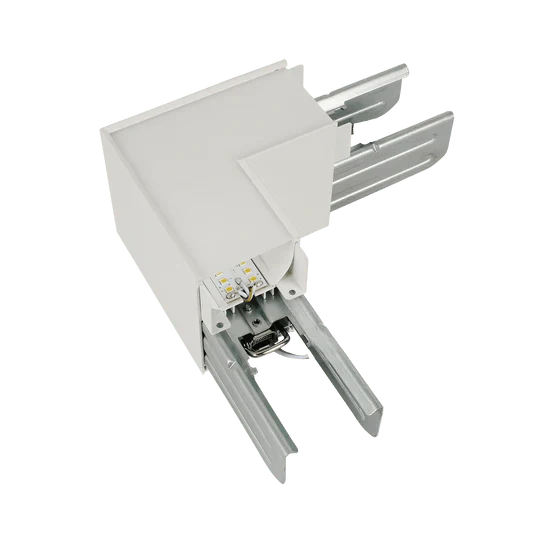

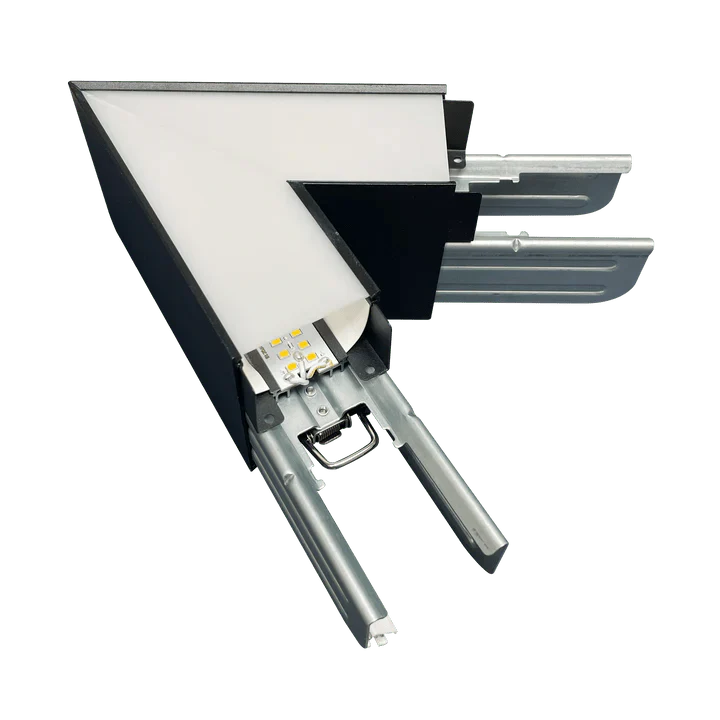

L Connector Instructions

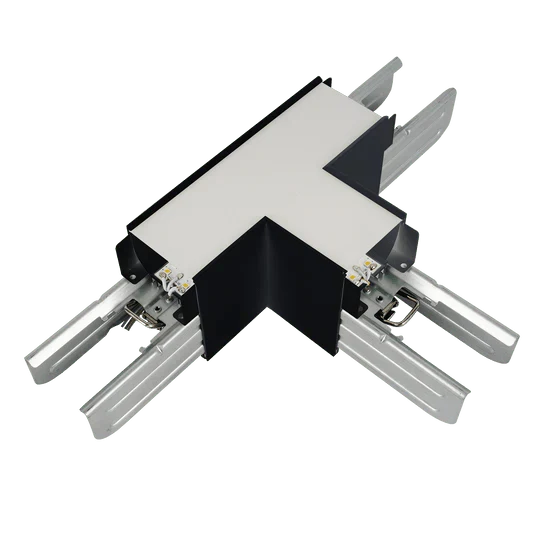

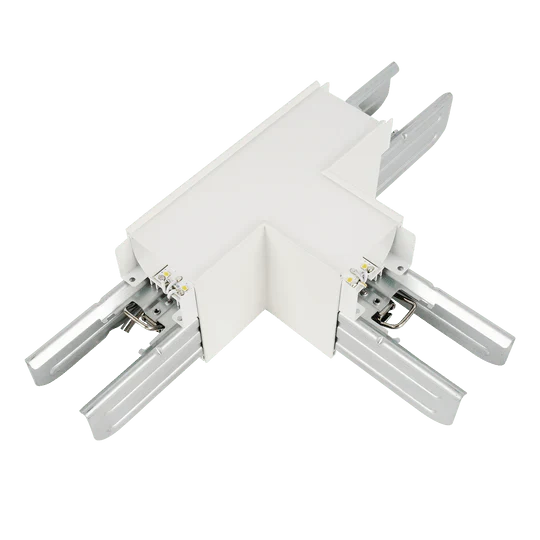

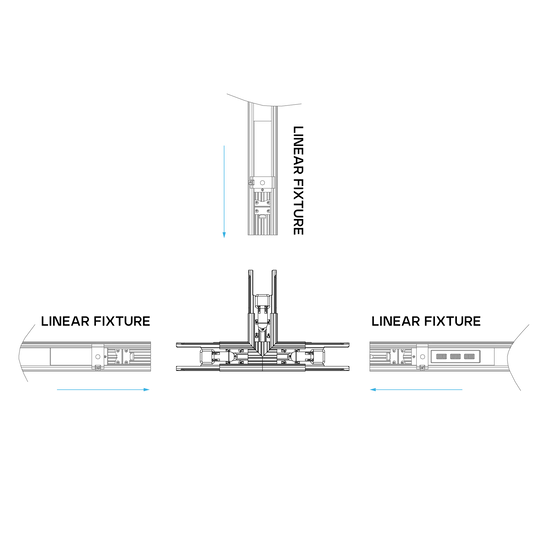

T Connector Instructions

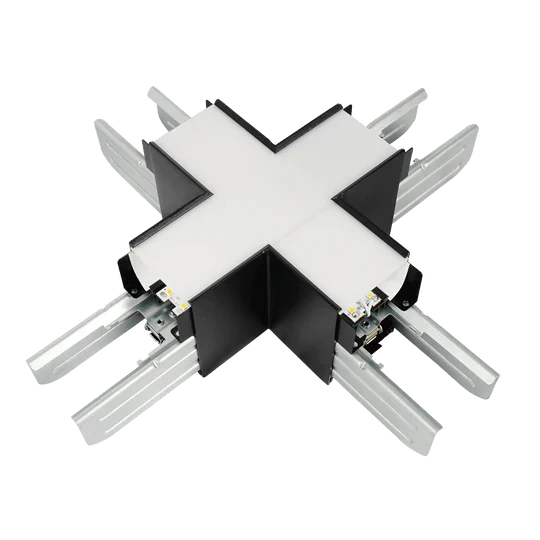

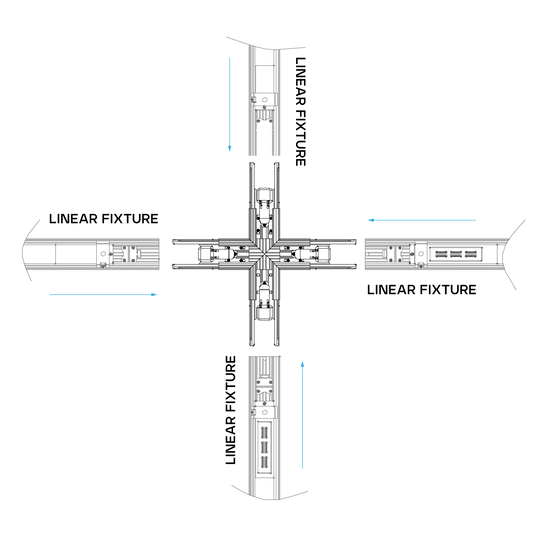

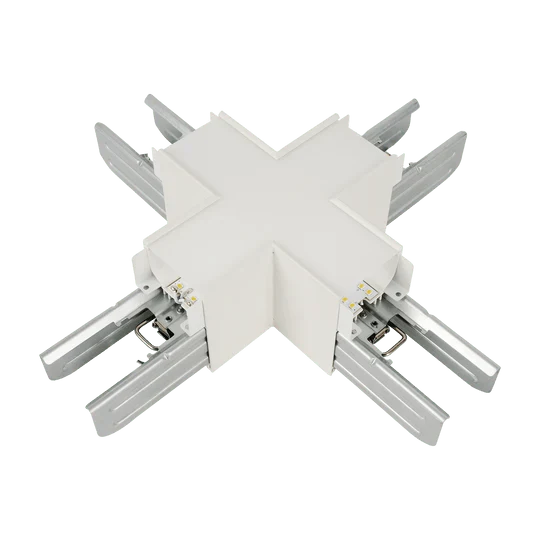

X Connector Instructions

Info

Wattage	3 Way Selectable
Lumen	3 Options
Color Temp.	30K-50K
Efficacy	122.2-135.4 lm/w
Lifespan	50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Lighting Pattern	70%/90%/100% downlight, 30%10% uplight
Lens	Diffused Polymethyl Methacrylate (PMMA)
Finish	Black, White
Mounting	Comes standard with two mounting accessories: aircraft cable for secure, suspended mounts and a stainless bracket for easy mounting to junction boxes
Finish	Formulated for high durability and long-lasting color
